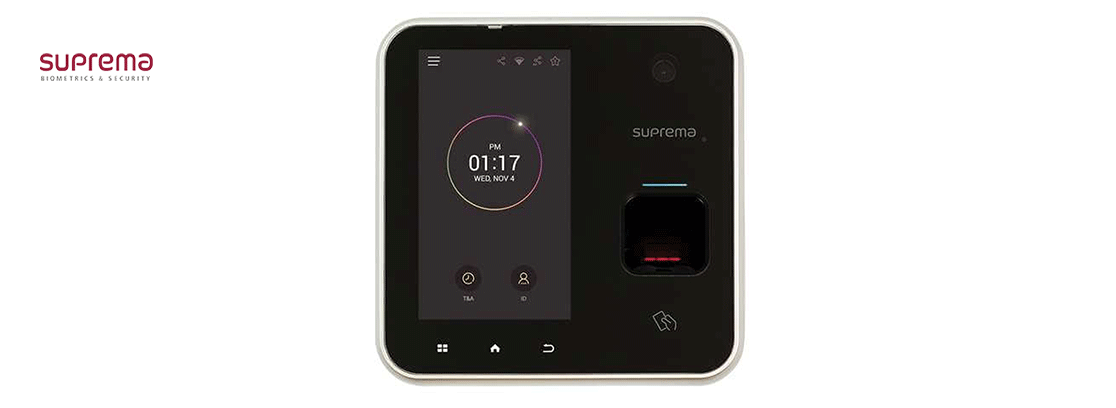

Nedo Corporation proudly offers the Suprema BioStation A2, a next-generation IP fingerprint
terminal designed for advanced access control and time attendance applications. Powered by
Suprema’s industry-leading biometric technology, the BioStation A2 delivers ultra-fast
fingerprint recognition with exceptional accuracy, even under challenging environmental
conditions. It features a powerful quad-core processor, a vibrant 5-inch touchscreen, and an
intuitive user interface for seamless operation. With enhanced security protocols, live
fingerprint detection, and extensive storage capacity, it supports up to 500,000 users and 5
million logs. The device also includes built-in Wi-Fi, TCP/IP, and RS485 connectivity for
flexible installation. Ideal for enterprise-level security, the BioStation A2 ensures
top-tier performance, durability, and data protection.
- RF Option: 125kHz EM / 125kHz HID Prox
- Mobile Card: Not Supported
- Ingress Protection: Not Supported
- Vandal Proof: Not Supported
- Template: SUPREMA / ISO 19794-2 / ANSI 378
- Extractor / Matcher: MINEX certified and compliant
- Live Face Detection: Supported
- Users (1:1): 500,000
- Users (1:N): 100,000 / 10,000
- Max. Face per User: 10
- Text Log: 5,000,000
- Image Log: 50,000
- CPU: 1.0 GHz Quad Core
- Memory: 8GB Flash + 1GB RAM
- LCD Type: 5” color TFT LCD
- LED: Multiple colors
- Sound: 24 bit/Voice DSP (echo cancellation)
- Operating Temperature: -20°C ~ 50°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 0% ~ 80%, non-condensing
- Storage Humidity: 0% ~ 90%, non-condensing
- Weight: Device: 440g, Bracket: 89g (including washer and bolt)
- Dimension (WxHxD, mm): 155 x 155 x 40
- Tamper: Supported
- Wi-Fi: Built-in, IEEE 802.11 b/g
- Ethernet: 10/100 Mbps, auto MDI/MDI-X
- RS-485: 1ch Host or Slave (Selectable)
- Wiegand: 1ch Input, 1ch Output
- TTL Input: 2ch Inputs
- Relay: 2 Relay
- USB: USB 2.0 (Host)
- SD Card: microSD card (Supports up to 32GB)
- PoE: IEEE 802.3af compliant
- Intercom: Supported
- Power: DC 12V
Suprema BioStation A2
Data Sheet
