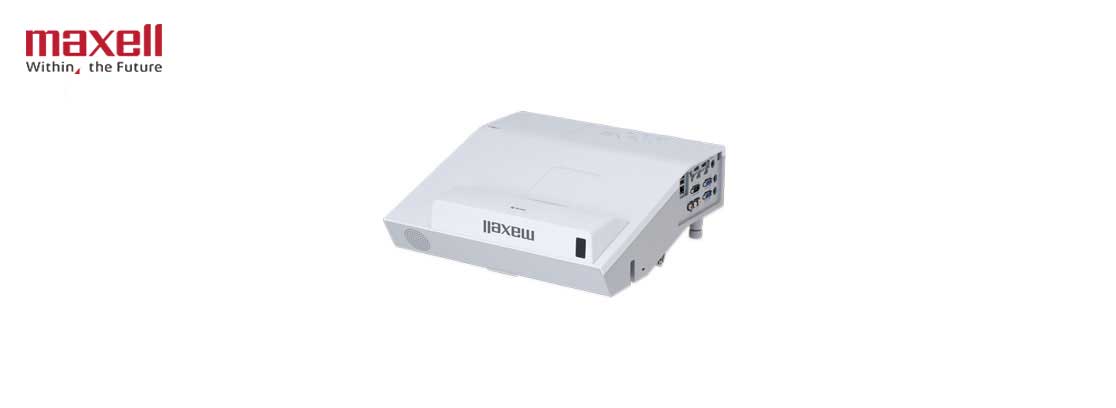

Ultra Short Throw HD Projector - Maxell MC-AX3506

Maxell’s MC-AX3506 ultra short throw LCD projector is ideally suited for producing large images in limited spaces. It provides vibrant image quality with cost-effective operation. A suite of advanced features normally found only on higher end models includes 2 HDMI ports, High Dynamic Contrast Range (HDCR), and Maxell’s original technology Accentualizer that allows the projected image to appear more real by enhancing sharpness, gloss and shade. Along with its light weight and compact design, the MC-AX3506 offers Maxell’s most appreciated installation feature, “Perfect Fit 2”, allowing time saving and ease of installation. As with all Maxell projectors, you can expect vibrant image quality, cost-efficient operation, and long-lasting reliability. Plus, Maxell’s Intelligent Eco and Saver Modes with ImageCare combines optimal picture performance with energy savings for a lower total cost of ownership. For added peace of mind, Maxell’s MC-AX3506 is also backed by a generous 3-year warranty and our world-class service and support programs.

3,600 ANSI lumens white/color output
XGA 1024 x 768 resolution
0.2 : 1 from edge of projector to screen 0.3 : 1 from mirror cover to screen

Technical Specifications

Projection Technology : 3LCD, 3 chip technology
Resolution : XGA – 1024 x 768
Focus Distance : 15" – 26" from mirror cover to screen
Display Size : 60" – 100"
Lens : f = 4.21 mm
HDMI : 480i, 480p, 576i, 720p, 1080i, 1080p, Computer signal TMDS clock 27 MHz – 150 MHz
Composite Video : NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video : 480i, 480p, 576i, 720p, 1080i, 1080p
Weight : Approximately 9.4 lbs
Control Terminals : 9-pin D-sub x 1 (RS-232 control)
Power Supply : AC90-132V / AC198-264V, 50/60Hz
Power Consumption : 360W
USB : Type A x 2 (PC-less presentation, wireless adapter) Type B x 1 (USB display or mouse control)
