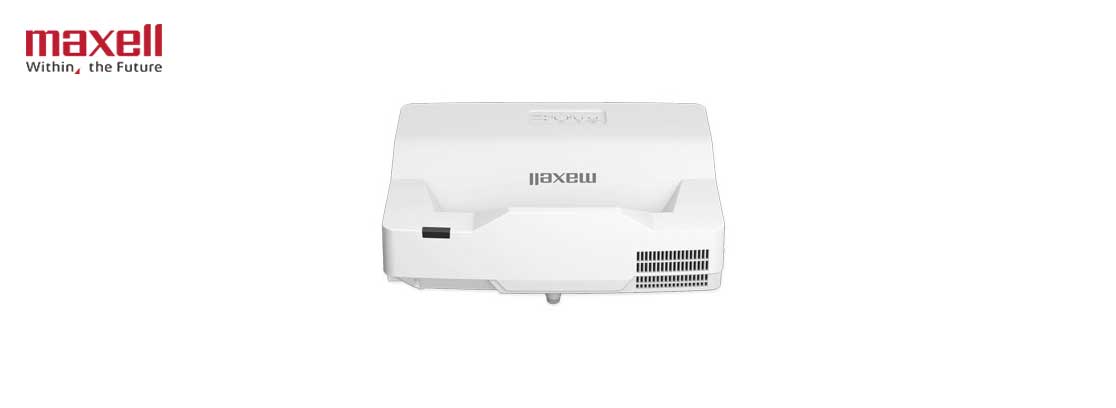

Ultra Short Throw Laser Projector - Maxell MP-AW4001

Maxell’s laser light source projector line now includes the 3LCD model MP-AW4001 with 4,200 ANSI lumens. The new laser phosphor light source offers approximately 20,000 hours (normal mode) of operation time and is virtually maintenance free, there is no lamp to replace providing a dramatic reduction in total cost of ownership. The MP-AW4001 projector is ideally suited for producing up to 130" images in limited spaces. It provides vibrant image quality with cost-effective operation. A suite of advanced features normally found only on higher end models includes 2 HDMI ports one shared with MHL, High Dynamic Contrast Range (HDCR2), and Maxell’s original technology Accentualizer that allows the projected image to appear more real by enhancing sharpness, gloss and shade. Along with its light weight and compact design, the MP-AW4001 offers Maxell’s most appreciated installation feature, “Perfect Fit 2”, allowing time saving and ease of installation. As with all Maxell projectors, you can expect vibrant image quality, cost-efficient operation, and long-lasting reliability. For added peace of mind, Maxell’s MP-AW4001 is also backed by a generous 5-year warranty and our world-class service and support programs.

4,200 ANSI Lumens Brightness
WXGA 1280 x 800
0.3 : 1 (From center of mirror to screen)

Technical Specifications

Projection Technology : 3LCD, 3 chip technology
Resolution : WXGA 1280 x 800
Focus Distance : 16" – 35" (From center of mirror to screen)
Display Size : 60" – 130"
Lens : f = 4.21 mm, digital zoom x 1.35, powered focus
HDMI : 480i, 480p, 576i, 576p, 1080i, 1080p Computer signal TMDS clock 25 MHz – 162 MHz
Composite Video : NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video : 480i, 480p, 576i, 576p, 1080i, 1080p
Weight (distance : width) : Approximately 16.8 lbs
Control Terminals : 9-pin D-sub x 1 (RS-232 control)
Power Supply : AC100-120V / AC220-240V, 50/60Hz
Power Consumption : 360W/350W
USB : Type A x 2 (PC-less presentation or wireless network) Type B x 1 (Remote control mouse or PC screen display)
