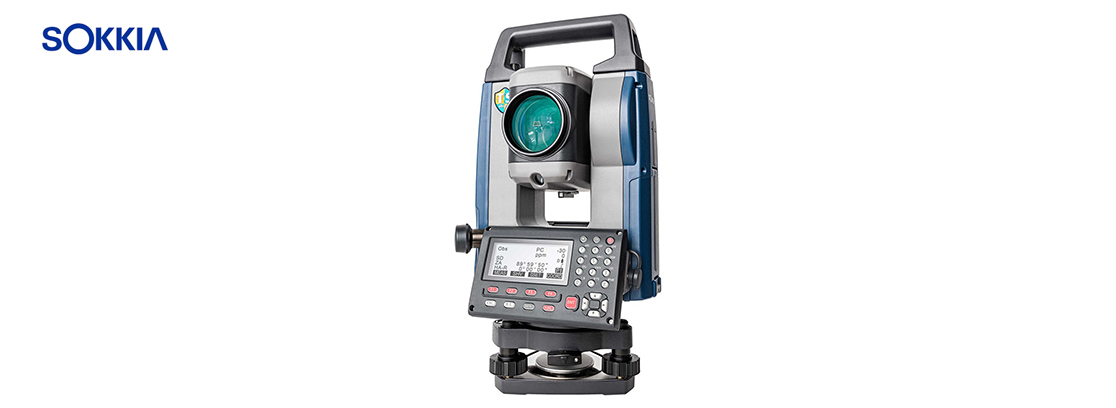

Evolving Entry-Level Total Station in Pakistan - Sokkia IM-101

The Sokkia IM-101 Series Total Station is an advanced yet user-friendly entry-level instrument designed to meet the needs of surveying professionals. Combining high-precision measurements with robust durability, this total station offers exceptional performance for a wide range of applications, including construction, land surveying, and engineering projects. Equipped with cutting-edge technology, the IM-101 ensures accurate data collection, streamlined workflows, and enhanced productivity. Its intuitive interface, reliable performance, and compact design make it an ideal choice for those looking to elevate their surveying capabilities without compromising on cost. Whether you’re a beginner or a seasoned pro, the Sokkia IM-101 Series Total Station delivers accuracy, efficiency, and value.

Construction and Survey Application Software On Board
Best-in-Class Measuring Distance Feature
Reliable Large Volume Internal Memory
Long-Hour Battery Operation
Long-Range Bluetooth® wireless communication
Strong Environmental Specification Against Tough Sites

Magnification / Resolving power : 30x / 2.5"
Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM)
Field of view : 1°30' (26m/1,000m)
Reticle illumination : 5 brightness levels
Minimum Display : 0.5"/1" (0.0001 / 0.0002gon, 0.002 / 0.005mil)
Accuracy (ISO 17123-3:2001) : 1"
Dual-axis compensator / Collimation compensation : Dual-axis liquid tilt sensor, working range: ±6' (±111mgon) / Collimation compensation available
Laser output : Reflectorless mode: Class 3R / Prism/sheet mode: Class 1
Measuring time* : Fine: 0.9s (initial 1.5s), Rapid: 0.6s (initial 1.3s), Tracking: 0.4s (initial 1.3s)
Operating system : Linux
Display / Keyboard : Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 28 keys with backlight
Control panel location : On both faces (Face 2 is only touch screen display )
Guide light : Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)
Laser-pointer : On both faces
Optical plummet : Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom
Dust and water protection / Operating temperature : IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF
Size (with handle) : 183(W)x 181(D)x 348(H)mm
Weight with battery & tribrach : Approx. 5.3kg (11.7lb)
Battery : Li-ion rechargeable battery BDC70
