Work more productively, more efficiently, and keep your teams
better informed with the GTL-1000. You have a single instrument
to lay out and scan on a single setup. It combines a fast laser
scanner and robotic total station, all in one efficient system.
Combined with ClearEdge3D Verity, this solution offers a new
standard of evolutionary construction verification workflows.
- Quick lay out and scanning with a single instrument
- Instantaneous point cloud registration
- Full dome scan and images in seconds
-
Scan density tailored to minimize software processing time
-
Point clouds accurately matched to BIM model coordinates
-
Motor Type : Direct drive by
ultrasonic motor
-
Rotation speed/Auto Tracking speed :
180 degree/sec / 20 degree/sec
- Minimum display : 1" / 5"
-
Laser classification : Reflectorless
mode: Class 3R Prism and reflective sheet: Class 1
-
Control panel : Display: 4.3 inch
Transmissive TFT VWGA color LCD, touch panel, Keyboard: 24
keys with key backlight
-
Memory : Internal: 1GB (includes
modmory for program files) External: USB flash drive (up to
32GB)
-
Guide Light : Visible distance range:
1.3 to 150m, Resolving power at center area (width)
- Tribrach : Detachable
-
Dust and water resistance / Operating temperature
: IP54 (IEC 60529:2001)/ - 10 C to 50
C
-
Dimension : 212 (W) x 178 (D) x 424
(H)mm
- Weight : 7.2 kg (with BDC70)
-
Scanning data rate : Maximum of
100,000 points per second
-
Field of view : V: 270 degree / H: 360
degree (maximum)
-
Distance accuracy : 4mm@10m, 6mm@20m,
8mm@30m
-
Card slot : SD card (Class 10 or more,
up to 32GB (FAT32)

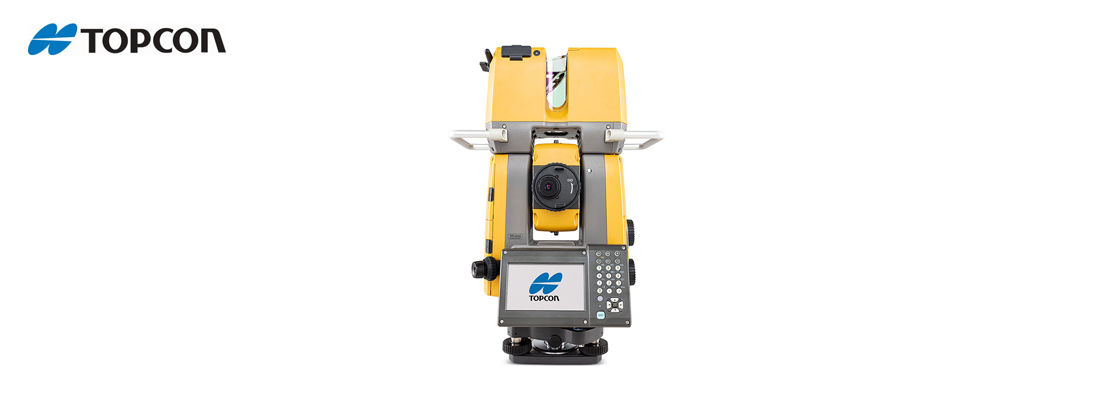

Topcon GTL-1000
Data Sheet
