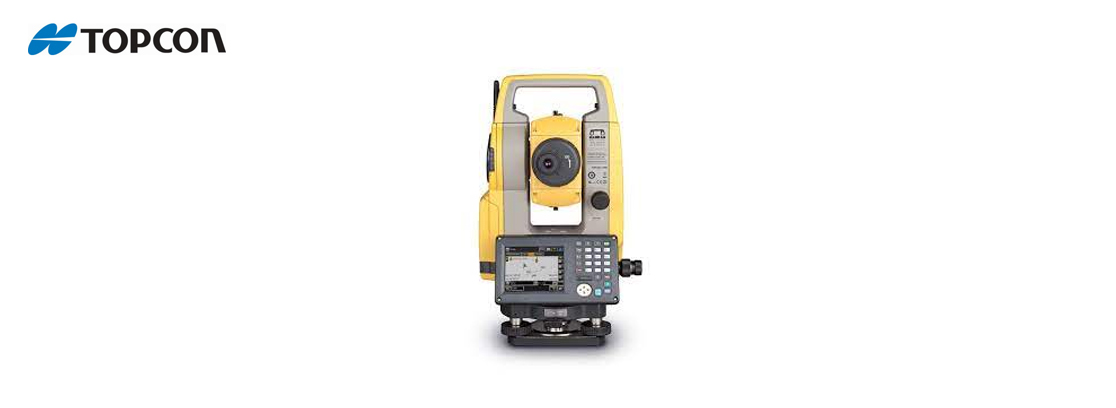

Topcon OS-100 Series Total Station

With the latest total station technology in an IP65-rated housing, the OS-100 is built for on-the-go tasks. This total station features far-reaching, precise-firing EDM capability; extended-use batteries and on-board MAGNET Field data-collection software. The OS-100 is a professional-grade, compact total station with a touchscreen interface. Our exclusive LongLink wireless communication technology, coupled with a robust EDM, enables the total station to automatically aim for the target, track it, lock onto it and measure it quickly and easily. The on-board MAGNET Field software enables quick field measurements including cross sections, full COGO (coordinate geometry) calculations and surface staking with just a single tap on an icon.


  • Intuitive MAGNET® Field data-collection software on board
  • Powerful EDM for rapid, repeatable measurements
  • Convenient EDM trigger key with minimal disturbance
  • Reflectorless design
  • Resolving Power   :   OS-101: 0.5”/1” OS-102: 1”/2” OS-103: 1”/3” OS-105: 1”/5”
  • Compensation   :   Dual-axis compensator
  • Prism EDM Range   :   4000m
  • Measuring Time   :   Fine: 0.9 sec Rapid: 0.7 sec Tracking: 0.3 sec
  • Operating Temperature*   :   -30ºC to +60ºC
  • Display   :   Dual LCD Touchscreen (OS-105 Single Display)
  • Battery Operation   :   Up to 20 hours
  • Wireless Connection   :   Bluetooth® Class 1
  • Dust/Water Protection   :   IP65

Topcon OS-100

Data Sheet
