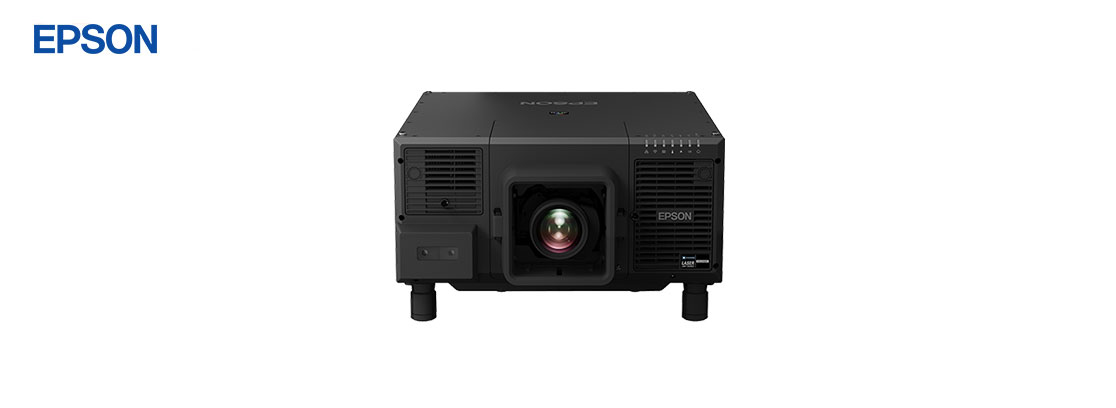

Get ready to impress and do even more with the the EB-L20000UNL
high brightness laser projectors. Deliver stunning images in
native 4K resolution1 , and revel in colour brightness of up to
20,000 lumens with Epson 3LCD technology. Enjoy ease of mobility
and installation flexibility. And high reliability with a robust
design protected by a triple layered dust-proof structure. Put
together, businesses now have all it takes in Epson to make a
powerful impact on a bigger stage. A newly developed liquid
cooling system maintains optimal temperatures of key optical
elements. The inorganic LCD panels, inorganic phosphor wheel and
laser light source are kept at optimal temperature no matter how
the projector is installed. This efficient cooling system
contributes to minimising body size and noise.
Discontinued
This model has been discontinued by the manufacturer and is no longer available.
Projection System : RGB liquid crystal shutter projection
system
LCD Size : 1.03” (D10)
Native Resolution: WUXGA (1920 x 1200)
Projection Lens Type: Power Zoom / Power Focus / Power Shift
Projection Lens F-Number: 1.8 - 2.3
Projection Lens Focal Length : 36.0 - 57.4 mm
Zoom Ratio: 1 - 1.61
Throw Ratio: 1.57 - 2.56
Lens Exchange: Yes
Lens Shift Mode : Powered
Vertical (Up/Down): ±60%
Horizontal (Left/Right): ±18%
Lightsource Type: Laser Diode
Lightsource Life (Normal / Extended): 20,000 / 30,000 hours
Zoom Wide: 60” - 1,000” [1.99 - 34.43 m]
Zoom Tele: 60” - 1,000” [3.26 - 55.63 m]
White Light Output (Normal/Eco): 20,000 / 14,000 lm
Designed for demanding environments — features a sealed light
source and optical engine for outstanding durability for live
events and fixed installations
Dynamic projection capabilities — with advanced tools like
tiling assist, Edge Blending and auto-color adjustment for
fast installation; free software for multi-projector setup
Bold, vibrant images — supports High Dynamic Range (HDR) via
HDR10 (PQ) and Hybrid Log Gamma (HLG); BT.709 color space
Mechanical shutter — protects against damage from external
laser lights
Frame interpolation — ideal for fast-moving images
Wide lens shift — optimized lens and optical engine design
