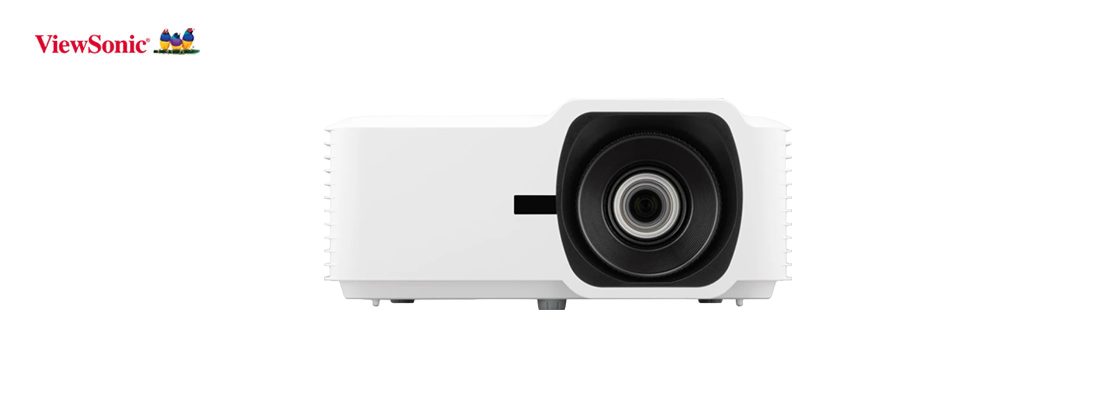

Nedo Corporation presents the ViewSonic LSD600W, a professional WXGA DLP laser projector
engineered to deliver exceptional visual performance for business, educational, and
commercial applications across Pakistan. Designed for environments where clarity and
reliability matter, it produces bright and engaging presentations that capture attention in
meeting rooms, lecture halls, and public venues. Featuring advanced laser projection
technology, the LSD600W offers dependable long-term operation with minimal maintenance,
making it an efficient solution for organizations that require consistent performance day
after day. Its large-screen projection capability helps create impactful viewing
experiences, ensuring that content remains clear and effective for every audience.
- Projection System: 0.65" WXGA
- Native Resolution: 1280x800
- Brightness: 6000 (ANSI Lumens)
- Brightness (Center Lumens): 6600
- Contrast Ratio: 3000000:1
- Display Color: 1.07 Billion Colors
- Light Source Type: Laser Phosphor
- Light Source Life (hours) with Normal Mode: 20000
- Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
- Lens: F=2.43-2.78, f=16.90-21.61mm
- Projection Offset: 124%+/-10%
- Throw Ratio: 1.18-1.54
- Optical Zoom: 1.3X
- Digital Zoom: 0.8x-2.0x
- Image Size: 30"-300"
- Throw Distance: 0.76-9.95m
- (100"@2.54m)
- Keystone: H:+/-30° , V:+/-30°
- Audible Noise (Normal): 32dB
- Audible Noise (Eco) : 27dB
- Input Lag: 25ms
- Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)
- *RB-Reduced Blanking
- HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- Horizontal Frequency: 15K-102KHz
- Vertical Scan Rate: 24-120Hz
- Bright Images for Large Venues
- Unmatched Contrasts, Enhanced Visibility
- Ultra-Large Screen with Lower Cost-per-Inch
- Reliable Long-Term Performance with DLP Projection Technology
ViewSonic LSD600W
Data Sheet
